| Product Model ： | ZCT1360J-LBS-H-H2-77B |
| Measuring Range ： | ±60 ° ( 0~360 °) |
| Output ： | RS485 |
| Power： | Voltage(8V) |
| Accuracy ： | 0.1 °-0.5° |
| Application ： | |
| IP Degree ： | IP67 |
| Temperature ： | -40℃ ~ +85℃ |

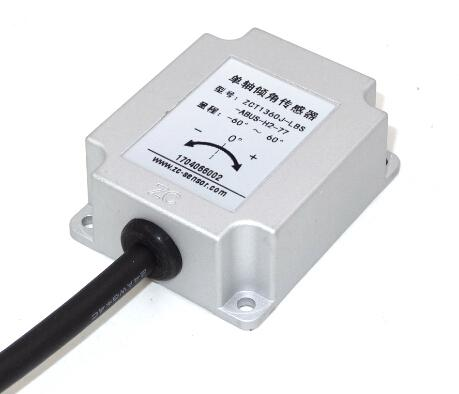

ZCT1360J-LBS-H-H2-77B is a Single-axis RS485 great range inclinometer for PV Solar tracker, which is developed by Shanghai Zhichuan Electronic Technology Co., Ltd. The maximum measurement angle range is 360° single axis, accuracy is 0.5° and RS485 output.
Current application areas:
solar energy monitoring; oblique single-axis solar tracking system; Siemens X-ray machine angle monitoring.
Wind deviation monitoring, inclination measurement, horizontal adjustment, vertical monitoring, attitude recording; engineering machinery, surveying and mapping instruments, etc.
Product features:
large range, high-cost performance; small size, lightweight, easy to integrate; all industrial devices, stable and reliable performance; impact resistance, anti-vibration. By inclinometer, the control system can adjust tilt angle of solar panel, so as to get more energy (25% increase)
Electrical parameter ：
|
Item |
Condition |
Min |
Typical |
Max |
Unit |
|
Power supply |
DC |
8 |
12 |
30 |
V |
|
Static working current |
No load, horizontal , Vcc=12V |
10 |
13 |
16 |
mA |
Performance parameter :
| project | Test conditions | Minimum | Typical Value | Maximum | unit |
| Measuring range ( 1 | -60 | +60 | ° | ||
| Resolution ( 2 | 0.1 | ° | |||
| Accuracy | At room temperature | ± 0.2 | ±0.3 | ° | |
| Zero point deviation | With shell | ±0.3 | ° | ||
| Zero temperature drift | -40～+85℃ | ±0.003 | ° /℃ | ||
| ± 0.65 | ° | ||||
| Power-on start time | 1 | s | |||
| Protection level | With shell | IP67 | |||
| Operating temperature range | -40 | +85 | ℃ | ||
| Line length | 1.9 | 2 | 2.1 | m |
Note 1: The default range is ±60° .
Note 2: Resolution refers to the minimum change in the measured quantity that the sensor can detect within its measurement range.
Wire definition：
| definition | 8~30V(DC) | 485B | 485 A | GND |
| Talk about line color | red | yellow | blue | black |
