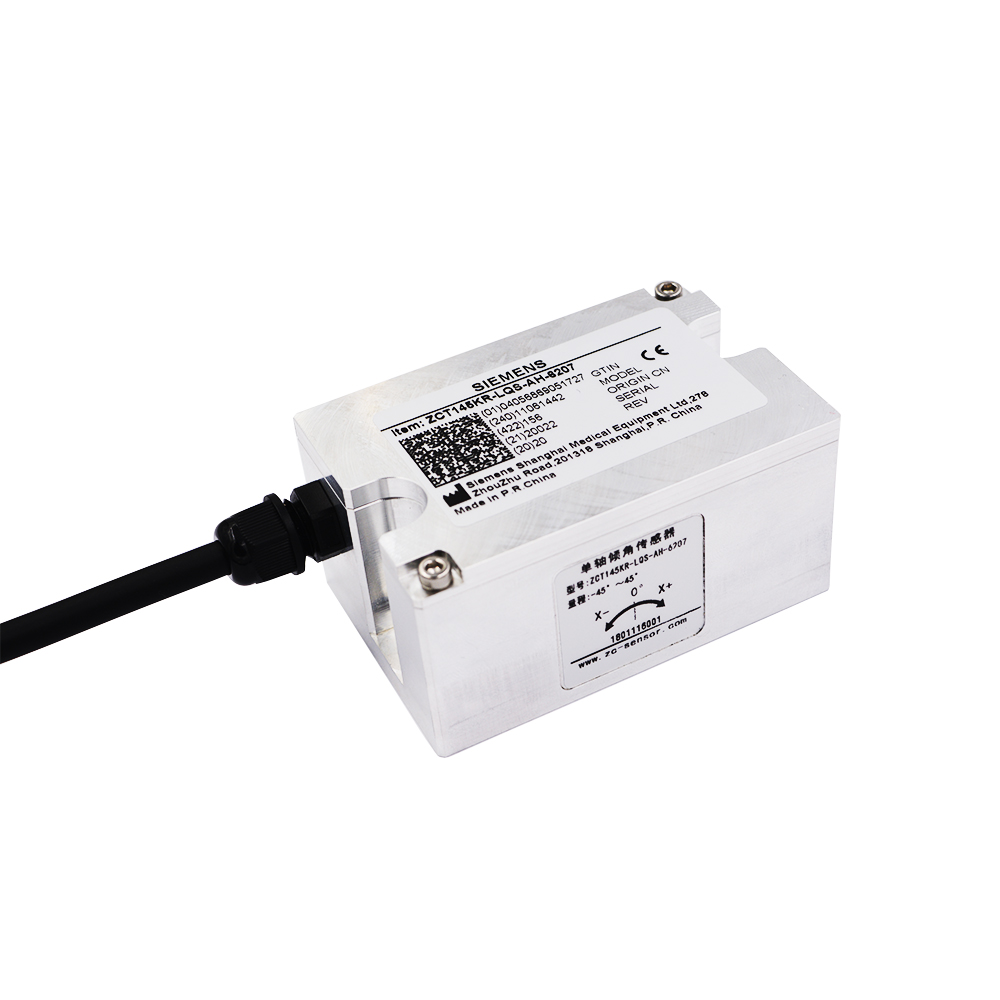

Single Axis Medical CT Inclinometer
| Product Model ： | ZCT1XXKR-LQS-AH-6207 |
| Measuring Range ： | ±45 ° |
| Output ： | RS485 |
| Power： | Voltage(8～30V) |
| Measuring Axis ： | Single Axis |
| Accuracy ： | 0.1 °-0.5° |
| Resolution ： | 0.01° |
| Application ： | Internet of Things |
GET A PRICE
Description：
ZCT145KR-LQS-AH-6207 is designed and researched by Shanghai Zhichuan Electronic Tech Co., Ltd, which is single-axis redundant inclinometer. Its max measuring range is ±45°, digital output: CAN and RS485. It can be widely used in medical, industrial machinery.
Features
Industry assembly.
With stable and reliable performance
With good impact and shock resistance performance
With aluminum alloy housing
Protection IP65
Applications
Medical industry
Hydraulic aerial cage, man lifts crane, hoisting machine
Safety control, monitoring, alarming.
Technical Parameters：
1.Working parameters
| Power voltage | 8 – 30V（DC） |
| Static working current | 12 – 22 mA |
| Operating temperature range | -10 – +65℃ |
| Storage temperature range | -40 – +85℃ |
| Humidity | 98% (without liquid state) |
| Atmospheric pressure range | 650hPa -1100hPa |
2.Performance
| Test range | Single axis: ±45° |
| Resolution(1) | 25℃:0.01° |
| Repeatability | 0.1° |
| Accuracy | Total range<±45°: ±0.1° |
| Output frequency | RS485:100HZ; CAN: 250HZ |
| Zero temperature drift | -20 – +50℃: 0.008-0.01°/℃ D35 |
| Certificates | CE(EN61000-6-1/EN61000-6-3) |
