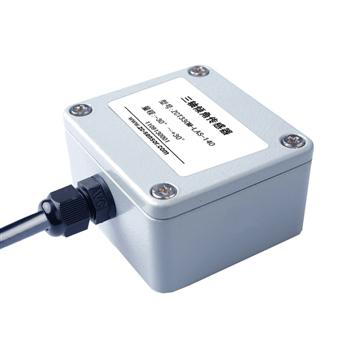

3 axis RS232,RS485,TTL output optional tilt sensor
| Product Model ： | ZCT330M-LXS-140 |
| Measuring Range ： | ±30 ° |
| Output ： | RS232 |
| Power： | Voltage(8～30V) |
| Accuracy ： | 0.01°-0.09° |
| Resolution ： | 0.01° |
| Application ： | Machinery |
| IP Degree ： | IP67 |
| Temperature ： | -40℃ ~ +85℃ |
GET A PRICE
Description：
ZCT330M-LXS-140 series 3 axis tilt sensor is researched and produced by Shanghai Zhichuan Electronic Tech Co. Ltd. Measuring range ± 30 degrees. High resolution. Adjustable response frequency and baud rate. Optional output interface.
Features
Entirely industrial device
Reliable performance
Shockproof and anti-seismic
Cost-effective
Protection level: IP65
Application
Engineering machine, engineering vehicle.
Security control.tilt monitoring.
Angle measuring, leveling adjustment. Zero setting.
Technical Parameters：
Tech parameter index:
| Parameter | Condition | Min. | Typ. | Max. | Unit | |
| Working parameter | Supply voltage(1 | 8 | 12 | 30 | V | |
| Quiescent current | 12V（DC） | 25 | 40 | mA | ||
| Working temperature | -40 | 85 | ℃ | |||
| Performance
parameter |
Measuring range(2 | 3 axis | -30 | 30 | ° | |
| Resolution (3 | 0.01 | ° | ||||
| Accuracy (4 | ±0.05 | ° | ||||
| Zero point temperature drift | -40～+85℃ | 0.5 | 0.86 | ° | ||
| Output frequency | revisable by
command *FLT** |
2.6 | Hz | |||
| Other | Size | 64*58*40 | mm | |||
| Standard cable length | 1.0 | m |
Wire connection definition:
| Part no. | output
interface |
red | black | blue | yellow |
| ZCT330M-LAS-140 | RS232 | VCC
（8～30V） |
GND（ground） | RS-232
（RXD） |
RS-232
（TXD） |
| ZCT330M-LBS-140 | RS485 | VCC
（8～30V） |
GND（ground） | RS-485-A
（RXD） |
RS-485-B
（TXD） |
| ZCT330M-LTS-140 | TTL | VCC
（8～30V） |
GND（ground） | TTL（RXD） | TTL（TXD） |
